Install SAMi Portal

SAMi Pre-Reqs

Install Process

Portal Pre-requisites

Use the table below to help with data and decisions needed for installation. Gather the information below before proceeding to step 1. Postgres database is recommended however another database can be configured. If using something other than the Postgres database, lines 19-20 (JDBC URL and driver) in the Step 1 section will need to be updated for the database you choose.

Name

Description

Value

PORTAL_DB_USER

Portal database username for jdbc connection

PORTAL_DB_PWD

Portal database user password for jdbc connection

PORTAL_DB_HOST

Portal database hostname for jdbc connection

PORTAL_DB_PORT

Portal database port for jdbc connection

PORTAL_DB_NAME

Portal database named for jdbc connection

PORTAL_URL

Portal url not including http:// or https:// for example: sam-portal-dev.demo.sidglobal.cloud

SAMI_API_GATEWAY_URL

SAMi REST APi’s for micro services

Another decision is if you are going to enable HTTPS for the portal. The YAML file in Step 1 below does have SSL enabled set to true. you can remove SSL for initial testing by changing line 8 to false; however, SSL in recommended for production use.

Step 1 – Create SAMi Portal Configuration file

Create the Environment Configuration file using the template below replacing the values from the above chart.

1global:
2 portaldb:
3 enable: true
4 user: "PORTAL_DB_USER"
5 password: "PORTAL_DB_PWD+"
6 url: "jdbc:postgresql://PORTAL_DB_HOST:PORTAL_DB_PORT/PORTAL_DB_NAME?useUnicode=true&characterEncoding=UTF-8&useFastDateParsing=false"
7 driver: "org.postgresql.Driver"
8 nginx:
9 protocol: "HTTP"
10 port:
11 number : "80"
12 secure:
13 enabled: false
14 credentialName: sam-portal-tls
15 domain:
16 use: true
17 name: PORTAL_URL
18 pgadmin:
19 enabled: false
20 liferay:
21 https:
22 enabled: false
23 elasticsearch:
24 imagePullSecrets:
25 - name: sam-regcred
26liferay:
27 java:
28 opts: -Xms4g -Xmx4g
29 osgi:
30 elastic:
31 enabled: true

Save the configuration in a file called sam-portal-values.yaml

Step 2 – Configure AWS

** AWS CLI needs to be installed on the SAM workstation

Create a K8 Secret for the K8 Cluster to Connect to the SIDGS Docker Registry

Configure AWS

The SAM Product team will provision and provide an AWS Client ID and Secret that need to be used for the below

1aws configure --region us-east-1

Name

Value

AWS Access Key ID

Ref Provided Info

AWS Secret Access Key

Ref Provided Info

Default Region Name

us-east-1

Default Output format

json

Configure Secret

Use the script below to setup the secret

The below script sets the namespace environment variable followed by creating the namespace and setting the secrets with ECR creds to pull the images.

1namespace=${K8_NAMESPACE:-sam-portal-system}
2kubectl create ns $namespace
3kubectl delete secret sam-regcred -n $namespace
4kubectl create secret docker-registry sam-regcred \
5 --docker-server=865615422972.dkr.ecr.us-east-1.amazonaws.com \
6 --docker-username=AWS \
7 --docker-password=`aws ecr get-login-password` \
8 -n $namespace
9
10

Step 3a – Install

** HELM Version 3.7 or above is required**

  1. Download the HELM Chart

    The below sets the creds to download helm charts.

    1aws ecr-public get-login-password --region us-east-1 | docker login --username AWS --password-stdin public.ecr.aws/sidgs
    2export HELM_EXPERIMENTAL_OCI=1
    3helm pull oci://public.ecr.aws/sidgs/sam-portal-chart --version 2.2.3
    4
    5

  2. Validate that Kubectl is available and connected to the SAM K8s Cluster

  3. Validate that the namespace ‘sam-portal-system’ is available and reachable

  4. Validate the sam-portal-values.yaml using the steps below

    1helm install sam-portal ./sam-portal-chart-2.2.3.tgz \
    2 -f sam-portal-values.yaml \
    3 -n $namespace \
    4 --dry-run
    5

    Upon successful interpretation, the complete Manifest is printed

  5. Install the sam-portal as shown below

    1helm install sam-portal ./sam-portal-chart-2.2.3.tgz \
    2 -f sam-portal-values.yaml \
    3 -n $namespace --create-namespace
    4

Step 3b – Upgrade ( Optional – For Upgrade/Patches to version 2.2.3)

Make you are using the latest charts and the latest copy of the values file, then you can upgrade using the commands below:

1namespace=${K8_NAMESPACE:-sam-portal-system}
2aws ecr-public get-login-password --region us-east-1 | docker login --username AWS --password-stdin public.ecr.aws/sidgs
3export HELM_EXPERIMENTAL_OCI=1
4helm pull oci://public.ecr.aws/sidgs/sam-portal-chart --version VERSION
5helm upgrade sam-portal ./sam-portal-chart-2.2.3.tgz -n $namespace -f sam-portal-values.yaml

Step 4 – Check AWS EKS and restart the portal

Using the PORTAL_URL, bring up the portal in a browser. Once the portal comes up, If you see a basic site like what is shown below, one more restart is required, which is described below.

Start k9s, connect to your portal namespace and then change to deployments view “:deployments”. You should see the deployments shown similar to the screenshot below:

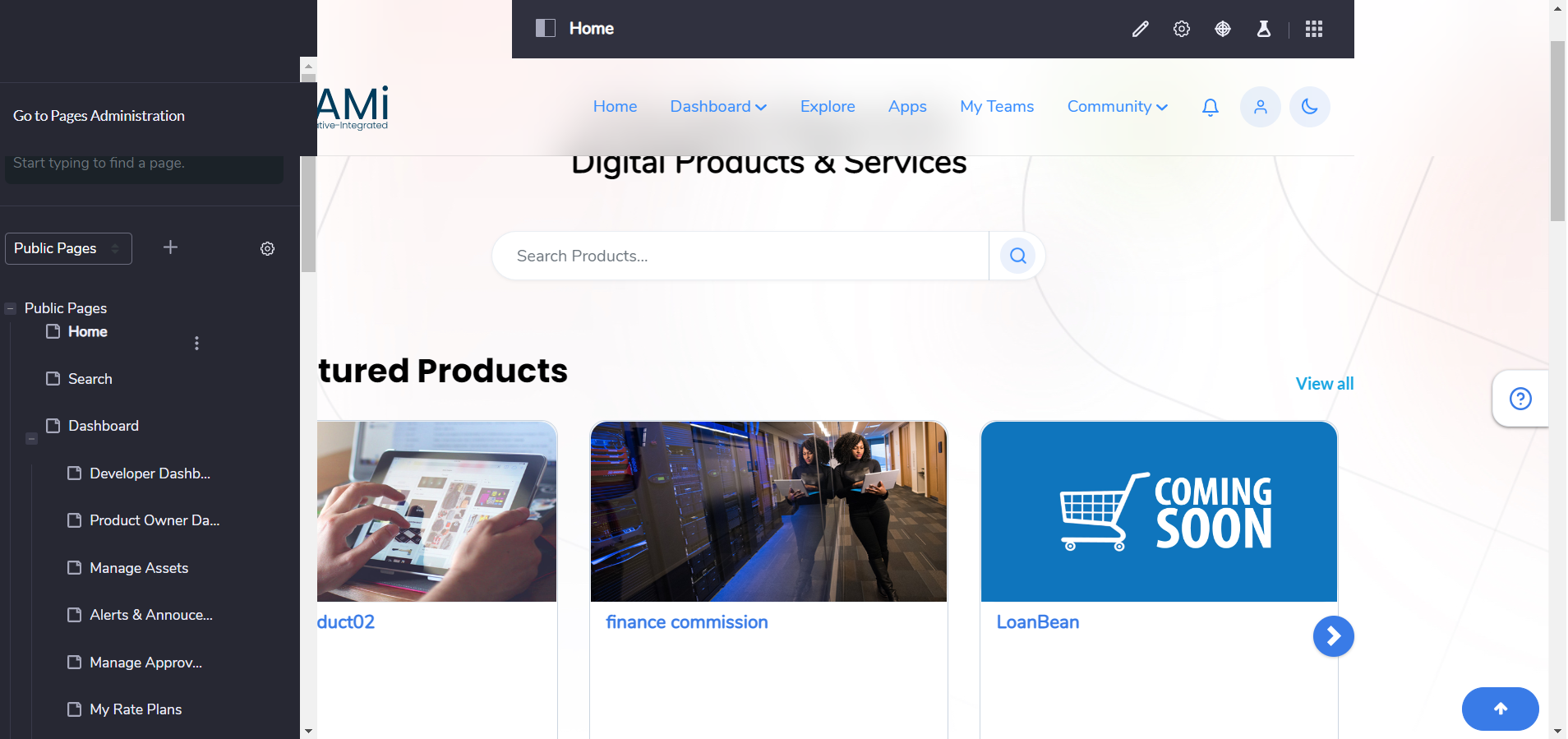

Scale down the sam-app-server to 0, then scale back to 1. It will take the app server about 3-5 minutes to start. Now you should see a site like the below screenshot:

Once the above screenshot is visible, continue to the next step.

Step 5 – Continue to post-install configuration

Follow the Steps in the link below to configure the SAMi Portal.
